Software

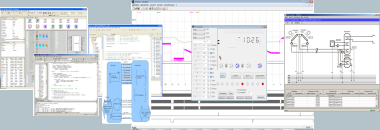

Communication is necessary for many devices in control engineering. Our spectrum in the software sector includes tools for data exchange and data presentation, for remote maintenance and remote visualization and for configuration.

Firmware update using Bootmanager

Evaluate historical data using Data Logging Viewer

Parameterize Modbu-MBus-Gateway using 5012Config

Remote visualization using 55Viewer

Smartphone App TROVIS 55Pro

Smartphone App TROVIS 55Home




Bootmanager

Our controllers include Flash-EPROM to carry the firmware. No direct access or exchange of controller is necessary to upgrade the firmware. Firmware updates can be loaded via the RS-232 C interface of the controller and the serial interface of the PC's (direct connection), via network (RS-485 via cable converter) and also via modem. This occurs with the software called "bootmanager".

Supported communication ways:

  • via a serial direct connection with the PC
    (Communication cable RS-232 1400-7419)
  • via a RS-485 network connection
    (Modbus, RS-232/RS-485 converter)
  • via modem connection
    (Modem is necessary)
  • via Modbus-TCP-Gateway
    (Material No 11993)
  • via USB-Converter 3
    (Material No 11995) - requires device driver (download here)
System requierments:
  • PC with serial interface RS232 or USB and
  • Operating system: WINDOWS 7, WINDOWS 8.1 or WINDOWS 10

Download (Bootmanager V1.50)

Binary version (for existing installations) 868 kB
Installer version 7,1 MB


Data Logging Viewer

The PC software Datalogging Viewer allows the evaluation of data, with a datalogging module (article No. 37699) recorded by a controller.

The datalogging module can be used in the controller TROVIS 5500, WPR3 and SOL3. It records cyclically the essential operation informations (measuring values, rated values, states of inputs and outputs) of the controller.

With the Datalogging Viewer the recording data can be stored away and be loaded again to be able to use a Datalogging module then for other purposes. Cuttings can be shown and the measuring values as a numerical value be registered.

The choice and arrangement of the curves to be indicated, the Skalierung and the colours can be freely configured. Several configurations can be stored and be loaded again.

The software was developed for the operating systems WINDOWS 7, WINDOWS 8.1 and WINDOWS 10 of Microsoft Corp.

Features:

  • an easy graphic analysis of arrangements for energetic optimization
  • Trend representation
  • Documentation of control results

Download

DataloggingViewer V1.73.0.0 1,4 MB


5012Config

The PC software 5012Config allows the configuration of the ModBus MBus Gateway as well as the announcement of heat meter data which has read a ModBus MBus Gateway from connected heat meters.

The software was developed for the operating systems WINDOWS 7, WINDOWS 8.1 and WINDOWS 10 of Microsoft Corp. Features:

  • an easy configuration of ModBus-MBus-Gateway
  • Connection with USB Converter 3 or serial interfaces RS-485 (COM)
  • an easy announcement of heat meter data

Download

5012Config V1.11 1,3 MB


55Viewer

The PC software 55Viewer allows the visualization, service and configuration for controllers capable of communication of the series TROVIS 5500 as well as SOL3 and WPR3.

After occurred communication connection controller type, firmware version and the opposed system code number is read and the connection is switched in the on-line mode. In the upper window part is shown the hydraulic scheme with all data specific for system (measuring values, control signals and outputs). In the lower window part the controller data about different tabs (operation, times of use, holding registers, coils and heat meter data) can be shown.

The software was developed for the operating systems WINDOWS 7, WINDOWS 8.1 and WINDOWS 10 of Microsoft Corp.

Features:

  • full-graphic visualization of the system
  • direct connection, network connection or modem connection
  • remote monitoring
  • remote adjusting


  Material no. 37160
  SAMSON order no. 1400-9770


TROVIS 55Pro

Monitor, control, and operate your house substation using a smartphone or tablet computer.

  • Monitor up to 99 house substations
  • AES-256 encryption provides a high level of security
  • View alarms for all house substations
  • Automatically detect system schemes and view them with relevant data points
  • Customize designations of house substations and all data points
  • Extend the list of data points as required
  • Change times-of-use conveniently
  • Includes a trend viewer to illustrate logged data
  • Read and write controller configurations (generated files are compatible with TROVIS-VIEW)
  • Customize your favorites shown on the start screen (dashboard)
  • Select different operator levels for users and experts
Supported district heating controllers:
  • TROVIS 5573
  • TROVIS 5573-1
  • TROVIS 5573-11
  • TROVIS 5576
  • TROVIS 5578
  • TROVIS 5579
Further controllers:
  • DHC
  • Series SOL3
  • WPR3
  • FWR3

The list of data points is generated automatically for the district heating controllers listed. You can put together your own list of data points for other Modbus-compatible controllers in expert mode.

Required accessories::
  • Modbus-TCP-Gateway or
  • Modbus-GPRS-Gateway or
  • Web-Modul TROVIS 5590 (without AES)
Recommended controller firmware: version 2.28 or higher

Download

Direct link to Google Play Store
Direct link to Apple App Store





TROVIS 55Home

Operate your heating system using a smartphone or tablet computer.

  • Get a quick overview of the most important values of your heating system, such as temperatures and operating states
  • Startup wizard
  • AES-256 encryption provides a high level of security
  • Make it 'hotter' or 'colder' using sliders
  • Adapt room temperature set points for day and night easily
  • Adjust the operating mode for every heating circuit
  • Change times-of-use conveniently
  • Activate holiday mode with one click
  • Customize designations of heating circuits
  • Send the date and time from your smartphone to the controller
Supported district heating controllers:
  • TROVIS 5573
  • TROVIS 5573-1
  • TROVIS 5573-11
  • TROVIS 5576
  • TROVIS 5578
  • TROVIS 5579


Required accessories::
  • Modbus-TCP-Gateway or
  • Modbus-GPRS-Gateway or
  • Web-Modul TROVIS 5590 (without AES)
Recommended controller firmware: version 2.28 or higher

Download

Direct link to Google Play Store
