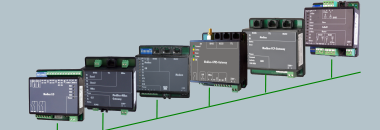

Accessories





Communication is necessary for many devices in control engineering. Our spectrum in the accessory sector includes tools for data exchange with our products, storage solutions and protection devices.

Converter/Repeater CoRe01

Modem DataMod11

USB Converter 3

Datalogging Modul

Overvoltage protectors SA5000 and SaCo55

Communication module iCon485

Modbus-MBus-Gateway

Modbus-TCP-Gateway

SAM HOME Gateway

Modbus-GPRS-Gateway, SAM MOBILE Gateway

Modbus I/O Modul



Universal Busgerät CoRe01, CoRe02

The device can be used as a converter (RS232 / RS485) or as a repeater for RS-485 networks (2-wire and 4-wire). Both RS485 interfaces (in the direction of master and direction Slave) can stick alternatively about a RJ11/RJ45 plug or about puttable screwing terminals. From the outside accessible switches allow the choice of mode of operation, Baud rate, termination and network bias.

10 LED serve for the control of the communication. In the 2 wire-network operation is the observance of a certain polarity of both wires not necessary, provided that this also applies for all the other devices used in the network. Both interfaces are free of potential compared with the signal processing (microcontroller) lying in between.

A protective mechanism prevents lasting blocking of the network management.

Additional features:

  • Distant update of firmware
  • Investigate of the settings of the device
  • Change of the configuration
  • Diagnosis functions if network problems occurs


 CoRe01
  Material no. 11996#1
  (Model - no longer available)


 CoRe02
  Material no. 11996
  SAMSON order no. 1402-1433


Modem DataMod11

The modem DataMod11 is suited for the application in connection with controllers of the classes TROVIS 5100, 5400 and 5500 as well as SOL3 and WPR3.

It allows the data transfer between a distant building control system and controllers of the called class on public telephone networks. Furthermore sending an error message via for Short Message Service (SMS) to a mobile phone is possible, as far as the controller supports this function.

In addition, the device contains an integrated network splitter which allows that several controllers in a building or network can be reached by only one common phone connection. The device includes two independent interfaces, according to standard RS-232C and standard RS-485.

Features:

  • Configuration possibility by service staff
  • Possibilities for the connection to Building Control Systems
  • simple assembly and operability


  Material no. 11991
  SAMSON order no. 1400-8801
  no longer available


USB Converter 3

The USB Converter 3 allows a conversion of an USB interface (Universally Serial Bus) on one of the following interfaces:

  • SPI (Serial Peripheral Interface)
  • RS485 (2-wire)
It is to be let communicate with the USB Converter 3 possibly a PC (via USB interface) with the devices which dispose of one of these interfaces. On the PC suitable software must exist in addition.

Application:

  • Read data from Parameter memory module, Parameter memory pen and Datalogging module
  • Controller firmware update via RS485 (2-wire network)
  • Distant configuration and remote control of controllers via RS-485 (2-wire network)

Download

USB Device driver
for Windows XP, Windows 7, Windows 8.1 and Windows 10
36,2 MB


  Material no. 37195
  SAMSON order no. 1400-9377


Datalogging Modul

The Datalogging module allows the recording of data of a controller of the series in 5500 as well as SOL3 and WPR3. It is accommodated in a RJ45 plug, and is simply pocketed in the designated jack of the controller. It starts immediately recording with default settings.

The normal control operation is not affected. The front-sided cover of the regulator can be closed by the small construction method also with pocketed Datalogging module.



  Material no. 37195
  SAMSON order no. 1400-9378


Overvoltage Protectors SA5000 and SaCo55

The offer spectrum encloses overvoltage protection modules for 2-wire and 4-wire networks which were developed especially for the connection by controllers capable of communication with RJ12 plugs.

SACO55 - overvoltage protection modules with integrated interface converter RS-232/RS-485 (2-wire).

SA5000 - overvoltage protection modules for 2-wire and 4-wire networks with application of separate interface converters (e.g. converter cabel type: 1400-8800)

Features:

  • overvoltage protection modules for the protection of a symmetrical interface with smooth protection and resistive isolation to the connected device
  • electrically oversized and highly loadable.
  • DIN rail assembly


 SA5000
  Material no. 11998
  SAMSON order no. 1400-9868

 SaCo55
  Material no. 37195
  SAMSON order no. 1400-9771


Communication module iCon485

The communication module iCon485 extends a controller of the type SOL3, WPR3 and similar devices by a RS485 interface free of potential.

Features:

  • 2-wire RS-485 interface
  • Automatic polarity recognition for RS-485 network
  • Automatic recognition of the network transference speed
  • Potential separation prevents equalising currents on the network wires
  • Operation displayed by LED
  • DIN rail assembly


  Material no. 11994
  SAMSON order no. 8812-2002


ModBus-MBus-Gateway

The module ModBus MBus Gateway extends a regulator of the type SOL3, WPR3 and similar devices by a RS485 interface free of potential and the comfortable binding of heat meter, stream meter and water meter with MBus interface.

The ModBus MBus Gateway can work in the state alone operation without connected controller and serves thus for the binding of heat meters with MBus interface to modern building control systems. For this mode of operation all necessary settings can be carried out with the software 5012Config as well as the heat meter data be selected.

Operation of the ModBus-MBus-Gateway: data from up to 6 meters configured are read cyclically via MBus from meters and stored in an internal memory of the ModBus-MBus-Gateway. A control system can read the last temporarily stored meter data via Modbus from the ModBus-MBus-Gateway.

Features:

  • up to 6 meters according to EN1434-3
  • direct connection of SOL3 or WPR3
  • 2-wire RS-485 network interface to connect building control system
  • Automatic recognition of the network transference speed
  • Potential separation prevents equalising currents on the network wires
  • Operation displayed by LED
  • DIN rail assembly

Dokumentation

Installation and operating manual 518 kB

Download

5012Config - configuration tool
for ModBus-MBus-Gateway
1,3 MB
Firmware V1.18 73 kB


  Material no. 11997
  SAMSON order no. 1400-9867


ModBus-TCP-Gateway

The module ModBus TCP Gateway extends a controller of the type TROVIS 5573, 5576 und 5579 as well as SOL3, WPR3 and similar devices by a comfortable useable ethernet (LAN) interface.

All Modbus RTU function codes supported by the controllers are available.

Ethernet interface is situated on the bottom side as RJ45 jack.

Direct connection to the controller are alternativ:

  • two-wire RS-485 network connector (RJ12) and
    two pole screw terminal
  • TTL connector (RJ45)
  • RS-232 connector (RJ45)
Configuration and administration is working with MS Windows tool "Network Gateway Configurator"

Documentation

Information sheet 822 kB

Download

SAM Gateway Configurator V2.0.3 3,4 MB


  Material no. 11993
  SAMSON order no. 1402-0056


SAM HOME Gateway

With a SAM HOME Gateway, it is possible to communicate via ethernet (LAN):

  • remote maintenance and remote visualization of the types of controllers TROVIS 5573, 5576, 5579 and SOL3, WPR3 and similar devices,
  • remote maintenance and remote visualization of devices with Modbus RTU interface,
  • readout of MBus meters (heat, electricity, water, gas),
  • alarm messaging or alarm capturing,
  • as a remote switch.

Features:

  • remote reading of up to 3 MBus meters
  • 2 binary inputs (alarm signal)
  • 0-10V input
  • potential free relay output
  • reach several controllers via one gateway
  • firmware updates of the connected controllers
  • economical power supply for 85 to 250V AC
  • configuration and service via web interface
Configuration and administration is working with MS Windows tool "Network Gateway Configurator"

Download

Firmware V2.0.6 701 kB
SAM Gateway Configurator V2.0.3 3,4 MB


  Material no. 11993
  SAMSON order no. 1402-1709


SAM MOBILE Gateway

With a SAM MOBILE Gateway, it is possible to communicate via mobile wireless:

  • remote maintenance and remote visualization of the types of controllers TROVIS 5573, 5576, 5579 and SOL3, WPR3 and similar devices,
  • remote maintenance and remote visualization of devices with Modbus RTU interface,
  • readout of MBus meters (heat, electricity, water, gas),
  • alarm messaging or alarm capturing,
  • as a remote switch.

Features:

  • remote reading of up to 3 MBus meters
  • 2 binary inputs (alarm signal)
  • 0-10V input
  • potential free relay output
  • reach several controllers via one gateway
  • firmware updates of the connected controllers
  • economical power supply for 85 to 250V AC
Configuration and administration is working with MS Windows tool "Network Gateway Configurator"

Download

Firmware V2.0.6 701 kB
SAM Gateway Configurator V2.0.3 3,4 MB


  Material no. 11983
  SAMSON order no. 1402-1710


ModBus I/O

The Modbus I/O module is designed to use with a 2-wire RS-485 ModBus for detecting and setting of inputs and outputs.

It allows communication as standalone device with a building control system or as an extension to the Programmable Logic Controller (PLC) TROVIS 5571 and the single room controller TROVIS 5572.

The bus parameters, baud rate, bias and terminator is selectable for RS-485 interface via Dil-switch.

The Modbus I/O has 4 fixed, potential-free relay contacts - binary outputs (BA) - and 6 configurable inputs or outputs.

Features:

  • Inputs: Pt1000, 0...1000 Ohm, 0...10V, Counter, Binary
  • Outputs: Binary, 0...10V
  • efficient switching power supply 85 to 250V AC
  • LED for operating mode and binary output
  • DIN rail mounting

Download

ModbusIOConfig V1.00.1.3 1,4 MB
Firmware ModbusIO V1.05 73 kB


  Material no. 37195
  SAMSON order no. 1402-0328
