Solar thermal controller





More and more solar thermal systems find use in the operational like private area. Besides, it is often overlooked the fact that only by a good control also optimally energy can be won.

Our extremely sparing solar thermal controllers provide the optimum control from easy up to complicated solar thermal systems.

Our controller supervise the collector temperature (s) as well as the storage tank temperature (s) and switch on the collector pump (s) and storage tank charging pump (s), as soon as enough solar energy is available to heat the storage tank further.

For Solar Air Collectors the devices offer a configurable ventilation control.

For each application the right product:

  • simplest two-step action controller ZPR
  • Compact controller with 2 sensors and 2 relays SOL3-1
  • Compact controller with 5 sensors and 3 relays SOL3-3
  • Compact controller with 7 sensors and 5 relays SOL3-5
  • Compact controller with 9 sensors and 7 relays SOL3-7
  • freely programmable control with 17 sensors and 12 relays SOL71


Two-step action controller ZPR

The simple solar thermal controller ZPR is an efficient microprocessor-controlled control solution for the easiest solar systems, offers all necessary functions.

The controller ZPR has an extremely sparing switching poer supply with maximum 8 kWh of annual consumption and less than 0.8 W in standby operation.

Characteristics:

  • two temperature sensor inputs
  • floating relay output with varistor protection
  • Minimum running time, minimum break time and wheel lock control for pump output
  • System temperature rise protection
  • Collector minimum temperature
  • Manual operation
  • Temperature difference and maximum and/or target temperature adjustable
  • Functional announcement
  • Temperature display (only ZPR-D)
  • DIN rail assembly

Documentation

Flyer ZRP 301 kB
Flyer ZRP-D 279 kB
Information sheet ZRP, ZRP-D 678 kB
Manual ZPR 581 kB
Manual ZPR-D 2,3 MB



 ZPR
  Material no. 11985
  SAMSON order no. 2868812

 ZPR-D
  Material no. 11986
  SAMSON order no. 2868815

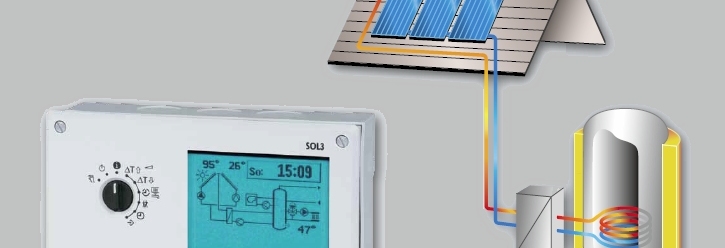

Solar Thermal Controller SOL3-1

The solar thermal controller SOL3-1 serves for the control of solar thermal systems with one collector field. It has two temperature sensor inputs and two floating relay outputs.

The automatic controller is characterised despite complex function of extent by a serving which can be handled intuitively surface. So the announcement can be switched on the level of information with rotatary push button between the time and the temperature sensors, the supervisor states always in the view in the information level. The most important settings (switching on and off swell) are directly accessible over the rotary switch. In the parameter level extensive settings are possible, e.g. minimum pump running time and minimum break time, absolute min. and max. temperature at the collector.

Documentation

Quick manual 4,2 MB
Installation and operating manual 3,5 MB



  Material no. 37381
  SAMSON order no. 2868817


Solar Thermal Controller SOL3-3

The solar thermal controller SOL3-3 serves for the control of solar thermal systems with up to two collector fields, up to two storage tanks, external heat exchanger, auxilary heater and heating circuit. It has up to nine temperature sensor inputs, three floating relay outputs, one counter input and one analog output to control the collector pump speed.

The automatic controller is characterised despite complex function of extent by a serving which can be handled intuitively surface. So the announcement can be switched on the level of information with rotatary push button between the time and the temperature sensors, the supervisor states always in the view in the information level. The most important settings (switching on and off swell) are directly accessible over the rotary switch. In the parameter level extensive settings are possible, e.g. minimum pump running time and minimum break time, absolute min. and max. temperature at the collector.

Features:

  • pump speed control
  • less than 8 kWh per year
  • integrated heat meter and counter for hours of operation

Documentation

Flyer 295 kB
Quick manual 4,3 MB
Shemata - Examples of use 986 kB
Installation and operating manual 3,6 MB

Download

Firmware V1.07 Material No 37383 148 kB
Bootmanager V1.50 868 kB
Device driver for USB cabel
(32/64-Bit for Windows NT, 2000, XP, Vista, 7)
2,3 MB



  Material no. 37384


  Material no. 37383


Solar Thermal Controller SOL3-5

The solar thermal controller SOL3-5 serves for the control of solar thermal systems with up to two collector fields, up to two storage tanks, external heat exchanger, auxilary heater and heating circuit. It has up to nine temperature sensor inputs, five floating relay outputs, one counter input and one analog output to control the collector pump speed.

The automatic controller is characterised despite complex function of extent by a serving which can be handled intuitively surface. So the announcement can be switched on the level of information with rotatary push button between the time and the temperature sensors, the supervisor states always in the view in the information level.

The device is held in two display options.

  • multilingual graphic symbol without text characters
  • Full graphic visualization of the system function and sensor values in the hydraulic scheme, as well as national language plain text menus

Features:

  • pump speed control
  • less than 8 kWh per year
  • integrated heat meter and counter for hours of operation

Documentation

Flyer 303 kB
Shemata - Examples of use 2,8 MB
Quick manual Material No 37386 4,9 MB
Installation and operating manual Material No 37386 8,4 MB
Quick manual Material No 37385 4,3 MB
Installation and operating manual Material No 37385 4,4 MB

Download

Firmware V1.09 Material No 37386 535 kB
Firmware V1.07 Material No 37385 148 kB
Bootmanager V1.50 868 kB
Device driver for USB cabel
(32/64-Bit for Windows NT, 2000, XP, Vista, 7)
2,3 MB



  Material no. 37386


  Material no. 37385


Solar Thermal Controller SOL3-7

The solar thermal controller SOL3-7 serves for the control of solar thermal systems with up to two collector fields, up to two storage tanks, external heat exchanger, auxilary heater and heating circuit. It has nine temperature sensor inputs, seven floating relay outputs, one counter input and one analog output to control the collector pump speed. The automatic controller is characterised despite complex function of extent by a serving which can be handled intuitively surface. So the announcement can be switched on the level of information with rotatary push button between the time and the temperature sensors, the supervisor states always in the view in the information level. The device is held in two display options.

  • multilingual graphic symbol without text characters
  • Full graphic visualization of the system function and sensor values in the hydraulic scheme, as well as national language plain text menus

Features:

  • pump speed control
  • less than 8 kWh per year
  • integrated heat meter and counter for hours of operation

Documentation

Flyer 306 kB
Shemata - Examples of use 709 kB
Quick manual Material No 37388 4,9 MB
Installation and operating manual Material No 37388 8,5 MB
Quick manual Material No 37387 4,2 MB
Installation and operating manual Material No 37387 4,5 MB

Download

Firmware V1.09 Material No 37388 535 kB
Firmware V1.07 Material No 37387 148 kB
Bootmanager V1.50 868 kB
Device driver for USB cabel
(32/64-Bit for Windows NT, 2000, XP, Vista, 7)
2,3 MB



  Material no. 37388


  Material no. 37387
  SAMSON order no. 2868819

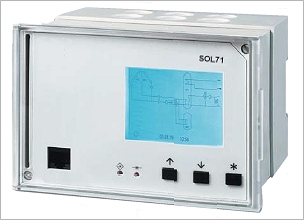

Solar Thermal Controller SOL71

The solar thermal controller SOL71 is an application to control simple to complex solar thermal systems using the programmable logic controller SAMSON TROVIS 5571 (PLC). The solar control spoils with special control comfort.

On the large display the diagram of the current operating parameters of the system is visible - the pollution free power production becomes experiencable so not only by the warmth feeling, but also by the presentation.

The selection of one from more than 100 hydraulic system variants effected on the grafic display by addition and/or deselection of components.

The control is expandable as well as control technical function range extension, so that also special systems with more temperature sensors, storage tank pumps or valves, additional heating circiuts or also fans can be integrated.

Features:

  • universally applicable, simple assembly, simple operability
  • grafic display for system presentation
  • pump speed control for up to 4 pumps
  • less than 2 W in standby operation
  • integrated heat meter and counter for hours of operation
  • 17 universial sensor inputs
  • 12 floating relay outputs
  • binding at building control system and Internet possible
  • up to 2 collector arrays, 2 storage tanks, heat exchanger, heating circuit, auxialary heating, domestic hot water circulation

Documentation

Flyer 391 kB



  Material no. 37191
  SAMSON order no. 2868821
